UV-Blaster Series
1) UV Blaster-Tower
The UV Blaster-Tower is useful for disinfection of highly touch surfaces like electronic equipment’s, computers, furniture’s and other gadgets in laboratories and offices that are not suitable for chemical disinfection method. The product is effective for bigger areas like hotels, restaurants, airports, shopping malls, metros, factories. This product is not designed for human disinfection.
- UV-Blaster is based on DRDO Technology which is engineered & manufactured by New Age Instruments and Materials Private Limited, Gurugram.
Features
1) Inbuilt Safety Sensors
- The UV-Blaster has inbuilt 360˚ Sensor for human safety, it also have Audio & Visual Safety Alarm, if any humans accidentally enters the room then system will automatically shut down within second for safety.
2) Fast and Efficient Disinfection
- The UV-Blaster Disinfection is so versatile that it can disinfect 450 square feet area (12 feet radial distance) within 04 minutes. The built-in timer is programmed in hours and minutes. You can customize sanitization time depending on the size of the room. The system can be controlled remotely via Android & Windowed based operation.
3) Inbuilt Memory
- The UV-Blaster has inbuilt memory to store log information to help security auditing of disinfection to cross checked whether the room was disinfected or not plus who did the cleaning , it will also create a record of abrupt human entry happened during disinfection record , by looking at the memory log of date/time user can ensure the room is disinfected or not and when again the disinfection cycle needs to be performed.
4) Kills 99.99% Virus in just 10 minutes
- UV Blaster is designed for the purpose of disinfecting most pathogens including SARS –COV2, corona family of viruses & other harmful bacteria ‘s in closed premises . This system uses UVC lights to deactivate the DNA of bacteria and RNA of viruses with minimal human intervention. The system will help in chemical free and rapid disinfection of high infection prone areas.
Application
- Nursing Homes, Clinic
- Outpatient Surgery Centers
- Physicians Offices, Ambulance
- Patient Rooms, Waiting Rooms
- Testing Laboratories, Operation Theater
- Ventilator Clinics & Kennels
- Passenger Flights & Bus, Train & Metro
- Airport, Metro Station & Banks
- Schools-Classrooms, Food Processing
- Detention Centers, Homeless Shelters
- Shopping Complex, Movie Theaters & Malls
- Hotel Rooms, Lockers Rooms & Restaurant
| Sr. No. | Specifications | 780-T | 1300-T |
|---|---|---|---|
| 1 | Total UV Output | 260 Watt | 433 Watt |
| 2 | UV Tube | 6 Nos | 10 Nos |
| 3 | Tube Power | 130 Watt Each | 130 Watt Each |
| 4 | Effective radial distance | 12 feet | 12 feet |
| 5 | Disinfection range | 450 sq. ft. area within 04 minutes | 450 sq. ft. area within 04 minutes |
| 6 | Operation | Android / Windows | Android / Windows |
| 7 | Connectivity | > 20 Meter Wireless Wi-fi | > 20 Meter Wi-fi |
| 8 | Current | 220 VAC, 50Hz | 220 VAC, 50Hz |
| 9 | Power Consumption | 780 Watts | 1300 Watts |
| 10 | Lamp Life | 9000 Hours | 9000 Hours |
| 11 | Tube Length | 1.540 meter | 1.540 meter |
| 12 | Motion Sensor | Yes | Yes |
| 13 | Inbuilt Memory | Yes | Yes |
| 14 | Safety Alarm | Yes | Yes |
| 15 | Illumination | 360 deg | 360 deg |
| 16 | Caster Wheel | 4 Nos (2 Nos Lockable) | 4 Nos (2 Nos Lockable) |
| 17 | Material | MS Powder Coated | MS Powder Coated |
| 18 | Remote | Either Wi-fi or RF | Either Wi-fi or RF |
| 19 | Dimensions (mm) | 1700 x 475 x 475 | 1700 x 475 x 475 |
2) UV Blaster Mini
The UV Blaster-Mini is useful for disinfection of highly touch surfaces like electronic equipment’s, computers, furniture’s and other gadgets . It is suitable for small size areas like laboratories ,office cubicles, washroom, pantry that are not easy to reach with a larger machine like UV Blaster-Tower. This product is not designed for human disinfection.
UV-Blaster is based on DRDO Technology which is engineered & manufactured by New Age Instruments and Materials Private Limited, Gurugram.
Application
- Nursing Homes, Clinic
- Outpatient Surgery Centers
- Physicians Offices, Ambulance
- Patient Rooms, Waiting Rooms
- Testing Laboratories, Operation Theater
- Ventilator Clinics & Kennels
- Passenger Flights & Bus, Train & Metro
- Airport, Metro Station & Banks
- Schools-Classrooms, Food Processing
- Detention Centers, Homeless Shelters
- Shopping Complex, Movie Theaters & Malls
- Hotel Rooms, Lockers Rooms & Restaurant
- News Agencies press release of New Age made UV-C disinfection system –
- https://www.indiatoday.in/india/story/uv-blaster-drdo-develops-wifi-enabled-uv-disinfection-tower-1674387-2020-05-04
- https://www.thehindu.com/news/national/drdo-develops-uv-disinfection-tower-for-sanitising-coronavirus-prone-areas/article31503039.ece
- https://www.ndtv.com/india-news/coronavirus-india-drdo-develops-uv-blaster-to-sanitize-virus-prone-areas-2223218
| Sr. No. | Specifications | 120Mini | 390-Mini | 520-Mini |
|---|---|---|---|---|
| 1 | Total UV Output | 40 Watt | 130 Watt | 173 Watt |
| 2 | UV Tube | 4 Nos | 3 Nos | 4 Nos |
| 3 | Tube Power | 30 Watt Each | 130 Watt Each | 130 Watt Each |
| 4 | Effective radial distance | 08 feet | 12 feet | 12 feet |
| 5 | Disinfection range | 200 sq. ft. area within 04 minutes | 450 sq. ft. area within 04 minutes | 450 sq. ft. area within 04 minutes |
| 6 | Operation | Android / Windows | Android / Windows | Android / Windows |
| 7 | Connectivity | > 20 Meter Wireless Wi-fi | > 20 Meter Wi-fi | > 20 Meter Wi-fi |
| 8 | Current | 220 VAC, 50Hz | 220 VAC, 50Hz | 220 VAC, 50Hz |
| 9 | Power Consumption | 120 Watts | 390 Watts | 520 Watts |
| 10 | Lamp Life | 9000 Hours | 9000 Hours | 9000 Hours |
| 11 | Tube Length | 0.900 meter | 1.540 meter | 1.540 meter |
| 12 | Motion Sensor | Optional | Optional | Optional |
| 13 | Inbuilt Memory | Optional | Optional | Optional |
| 14 | Safety Alarm | Optional | Optional | Optional |
| 15 | Illumination | 360 deg | 360 deg | 360 deg |
| 16 | Caster Wheel | 4 Nos (2 Nos Lockable) | 4 Nos (2 Nos Lockable) | 4 Nos (2 Nos Lockable) |
| 17 | Material | MS Powder Coated | MS Powder Coated | MS Powder Coated |
| 18 | Remote | Either Wi-fi or RF | Either Wi-fi or RF | Either Wi-fi or RF |
| 19 | Dimensions (mm) | 1150 x 475 x 475 | 1700 x 475 x 475 | 1700 x 475 x 475 |

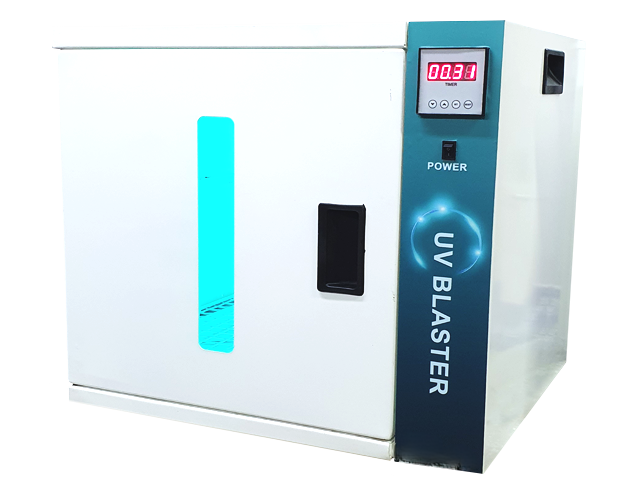

3) UV Blaster Box
UV Disinfection cabinets are simple to use and ensure sterile equipment. UV lamps are optimally placed along the reflectors to eliminate blind spots and corners. The operator is protected from UV radiation by safety controls to ensure that lamps cannot be activated until the cabinet door is securely closed. The sanitization chamber is lightweight, portable and kill 99.99% viruses.
Features
1) One-touch UVC Irradiation
2) Custom timer so user can change with different materials
3) Portable & Easy to Use
4) safety switch to protect from UV radiation
Application
- Papers & Files
- Grocery Items
- Clothes & Textiles
- Educational Material
- Plastic & Metals
- Jewelry & Ornaments
- Mechanical tools
- Electronics Device
- Medical Tools like dental operatory
- Beauty Tools
| Sr. No. | Specifications | 120Mini | 390-Mini |
|---|---|---|---|
| 1 | Operating Voltage | 230VAC | 230VAC |
| 2 | UV Tube | 3 UVC Tube & 1 Hydroxyl Radical Tube | 4 UVC Tube |
| 3 | Power | 11 Watts | 11 Watts |
| 4 | Frequency | 50 Hz | 50 Hz |
| 5 | Type | Portable | Portable |
| 6 | Lamp | UV-C & Hydroxyl | UV-C |
| 7 | Wavelength | 254 nm Peak | 254 nm Peak |
| 8 | Timer | Adjustable | Adjustable |
| 9 | Body Material | Powder Coated MS | Powder Coated MS |
| 10 | Safety | Limit Switch at Door | Limit Switch at Door |
| 11 | Outer Dimension (mm) | L 570 X W 465 X H 430 | L 570 X W 465 X H 430 |
| 12 | Capacity | 70 Ltrs. | 105 Ltrs. |
| 13 | Weight | ≤ 12 Kg | ≤ 15 Kg |
4) UV Blaster Tube
Disinfector with Motion Sensor can be installed almost anywhere on Walls to disinfect surfaces and also improve the air quality of your home. It is capable of removing biological pollutants, increasing the quality of indoor air.
UV Blaster tube equipped with smart sensor technology that can sense the motion and shuts down immediately to provide safety to human if someone accidentally enters the room where disinfection is running. Sensor has 5 meters motion detection range. UV Blaster Tube should always be used in an unoccupied rooms for disinfection.
Features
1) UV Blaster Tube Disinfector
Its a great tool to disinfect your house/office. It uses short wavelength UV-C light to eliminate micro-organisms that are present in the environment. The lamp is capable of disrupting the growth of bacteria/viruses by damaging DNA of the microorganisms.
2) Chemical free no spray
Another reason for buying UV Blaster Tube : World-wide studies has shown that UVC based disinfection do not requires any spray of chemicals for disinfection. Its silently do the disinfection on all surfaces which directly exposed to UVC rays like walls, Surfaces, objects inside room ensuring and provide you a 99.9% disinfection and clean air.
3) Safe to Install in Your Home/Office, Shops
We all know that UV lights can be dangerous for living things hence we should not be expose to them. Smart sensors inbuilt in UV Blaster Tube ensures that whenever it see any motion it safely shuts down the UVC emission and protect from UVC exposure.
4) Can be Controlled Remotely
UV Blaster Tube is equipped with wireless remote control which allows you to control the UVC light without entering the room, plus it also has motion sensor for enhanced safety. This makes it the safest UVC disinfector on the market.
Application
- Nursing Homes, Clinic
- Outpatient Surgery Centers
- Patient Rooms, Waiting Rooms
- Testing Laboratories, Operation Theater
- Ventilator Clinics & Kennels
- Schools-Classrooms, Food Processing
- Hotel Rooms, Lockers Rooms & Restaurant
| Sr. No. | Specification | Parameter |
|---|---|---|
| 1 | Power | 36/130 Watts |
| 2 | UV Source | 1 Tube |
| 3 | Lamp Life | 9,000 Hours |
| 4 | UV Wavelength | 254 nm |
| 5 | Weight | ≤ 3 Kg |
| 6 | Length | 900/1554 mm |
| 7 | Remote | Optional(Either Wi-fi or RF) |
| 8 | Motion Sensor | Optional |

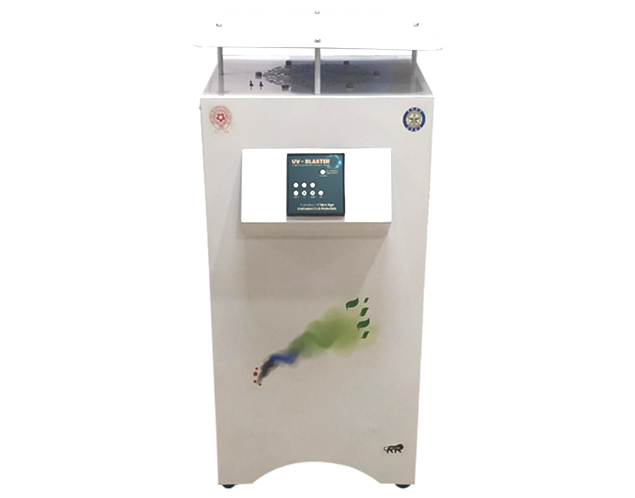

5) UV Blaster Air Sanitizer
In a research issued by Centre for Biological Sciences, UK .Respiratory viruses are responsible for more deaths globally than any other infectious agent. The standard air purifier systems depend only on HEPA filters to trap dust and other particles .UV BLASTER uses state-of-the-art ultraviolet light technology to keep viruses and other micro organisms from reproducing and infecting a home, office, or other indoor space. UV Blaster air purification system combines a UV lamp with a traditional filter in order to maximize both the removal of particulate matter from the air and the killing of germs and bacteria.
- Our HEPA filter will trap 99.97% of particulates . The Activated Carbon Filter and the Charcoal Filter are made of granules ensuring much higher absorption of gases and bacteria.
Application
- Nursing Homes, Clinic
- Outpatient Surgery Centers
- Physicians Offices, Ambulance
- Patient Rooms, Waiting Rooms
- Testing Laboratories, Operation Theater
- Ventilator Clinics & Kennels
- Passenger Flights & Bus, Train & Metro
- Airport, Metro Station & Banks
- Schools-Classrooms, Food Processing
- Detention Centers, Homeless Shelters
- Shopping Complex, Movie Theaters & Malls
- Hotel Rooms, Lockers Rooms & Restaurant
| Sr. No. | Specification | FM300 | Fm500 |
|---|---|---|---|
| 1 | Total UV Output | 7 Watts | 14 Watts |
| 2 | Area Coverage | 300 sq. ft. | 500 sq. ft. |
| 3 | UV Tube | 2 Nos | 2 Nos |
| 4 | Tube Power | 11 Watts | 11 Watts |
| 5 | Lamp Life | 9000 Hours | 9000 Hours |
| 6 | Noise | 40 dB | 60 dB |
| 7 | Dimensions (Inches) | 12 X 12 X 24 | 12 X 12 X 29 |
| 8 | Weight | ≥ 15Kg | ≥ 20Kg |
6) UV Blaster Robo
UV Blaster Robo has been designed with input from our existing customer base and specialists experienced in cleaning and disinfection procedures. Our robot has several cutting-edge features to help you reach higher levels of disinfection. Reducing healthcare associated infections and minimizing the risk of UV-C.
When UV-C light is applied, it kills living bacteria and inactivates viruses. This is because it irradiates RNA and DNA strands, breaking cells down on a molecular level. UV-C germicidal irradiation peaks at 254 nm wavelength and has been found to be effective in decreasing the risk of transmitting multidrug-resistant organisms
Features
In larger areas, UV-C light can encounter challenges associated with shadows and distances. These challenges require static UV-C devices to be repositioned manually multiple times.With UV Blaster Robo ,UV-C light can be sufficiently distributed to all surfaces of a given area. Robot based disinfecting will help free up staff.
The Robot comes equipped with camera as well as motion sensors to recognize obstacles in its way. The combination of features provides the highest safety in the industry. By accessing these cameras via the control tablet, the operator can navigate the robot remotely.
UV Blaster Robo is easy to integrate with an intuitive user interface and state of the art technology make installations and training easy, and will have your organization up and running in just a few hours. With the Administration system, you have access to detailed disinfection reports which you can export a PDF directly from the report.
